8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution

Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution

Brand Name : AISON

Model Number : Z088WU03 V1

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : 30~50usd/pc

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

LCM Name : 8.8 inch Strip Bar Type TFT Display

Pixels : 1280x320

Outline dimension : 231.8*76.2*6.5mm

AA Size : 216.96 x 54.24mm

Interface Type : MIPI

Brightness : 1000cd/m2

Display mode : Normally Black

Operating temperatures : -20 to 70 degree

Storage temperatures : -30 to 80 degree

Contact Now

8.8 Inch 1280x320 Strip Bar Type TFT Display MIPI Interface

General Description

The Z088WU03 V1 is an advanced 8.8-inch bar TFT LCD display featuring an IPS panel that delivers exceptional color accuracy and wide viewing angles. With a high resolution of 1280x320 pixels , this ultra-wide 8.8-inch screen is ideal for applications requiring a narrow, elongated display format. With a brightness of 1000 cd/m² and a contrast ratio of 800:1, this display guarantees superior visibility and clarity in diverse lighting conditions.

Key Features:

  • Landscape Bar Type TFT:With a 1280x320 high resolution and IPS viewing angle,landscape bar tft display.
  • MIPI Interface: Supports high-speed data transfer for seamless integration with various systems.
  • IPS Technology: Offers wide viewing angles (85° left, right, up, down) for vibrant and accurate colors from multiple perspectives.
  • Temperature Range: Operating temperature from -20°C to +70°C and storage temperature from -30°C to +80°C, suitable for a range of environments.

General Data

Model Name 8.8 inch bar type TFT display
Resolution 1280x320
Model Size (W*H*T) 231.8*76.2*6.5mm
Display Area (W*H) 216.96 x 54.24mm
Interface MIPI
Display Mode Normally Black,Transmissive
View Direction
ALL
Brightness 1000 cd/m2

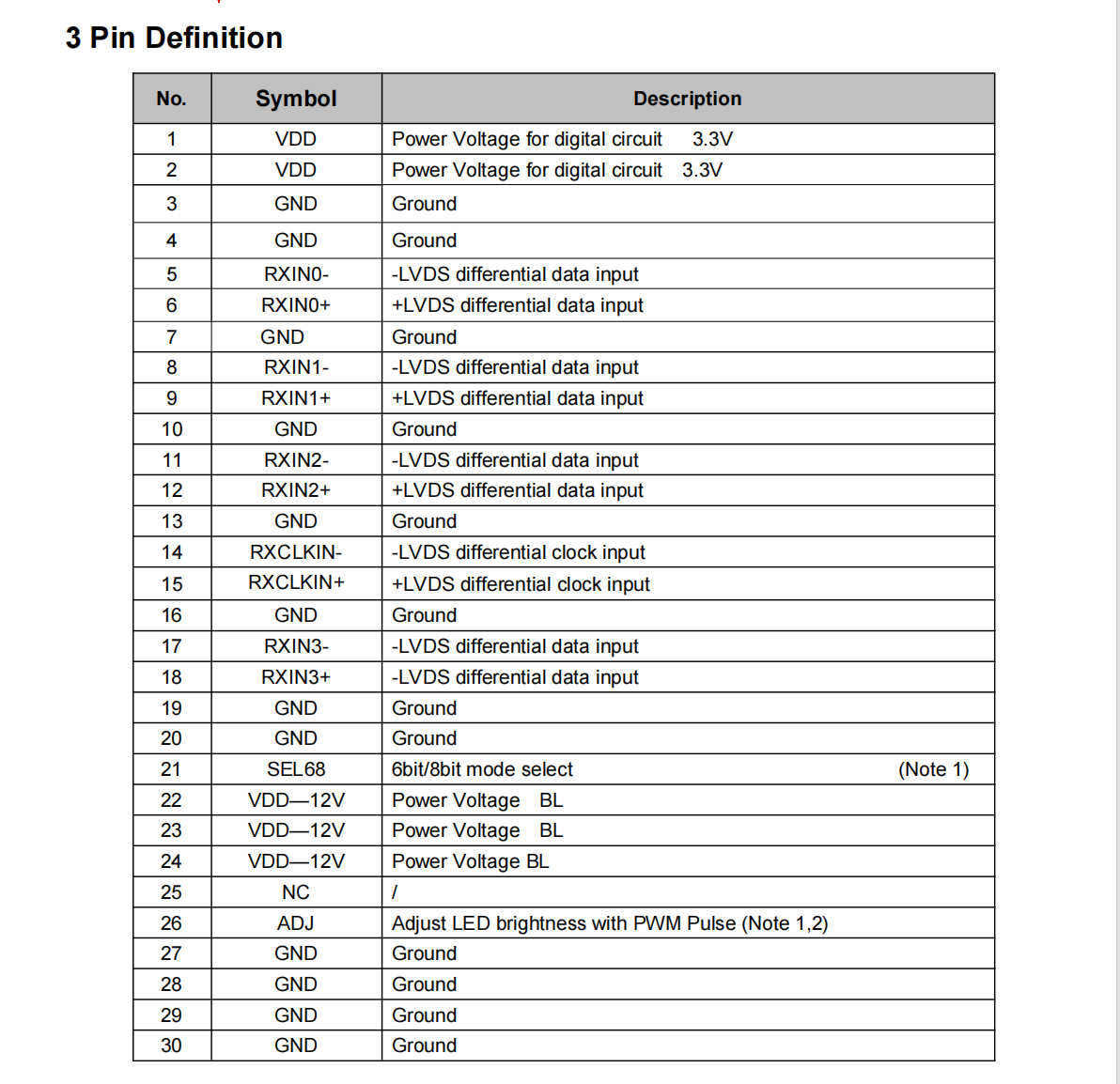

Pin number 30 pin
Contrast Ratio
800:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

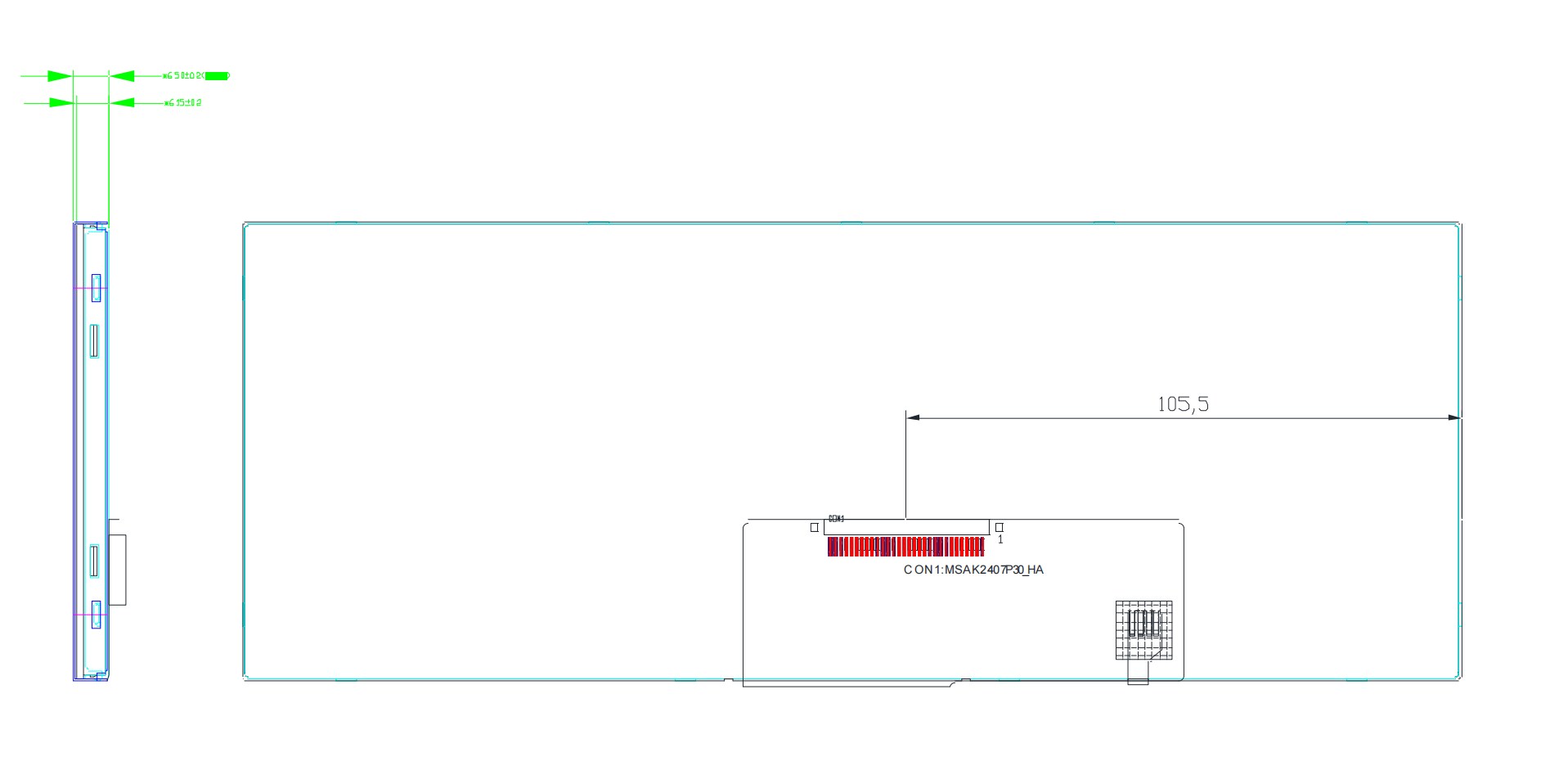

Drawing

8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution

8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution

Product Details

8.8 Inch Strip Bar Type TFT Display with MIPI Interface Operating Temperatures -20 to 70 Degree 1280x320 Resolution

TFT Applications:

The 8.8 inch bar type lcd module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This 8.8-inch bar display is particularly ideal for applications such as small-scale digital signage, transportation systems, control panels, and smart devices, where space is limited and a wide, narrow screen is essential. Its ultra-wide aspect ratio makes it well-suited for use in interactive kiosks, point-of-sale systems, status indicators in public spaces, advertising displays, and medical equipment.
