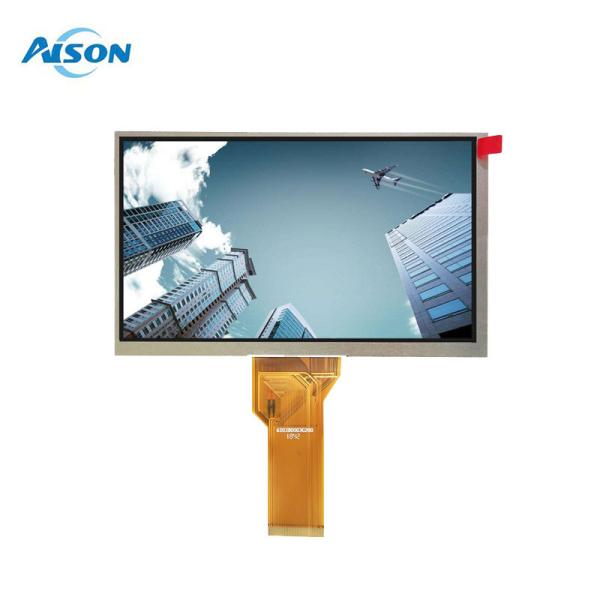

800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB

Product Categories
Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB

  • 1
  • 2
  • 3

Brand Name : AISON

Model Number : AT070TN92

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister Package

Name : Original LCD Display

Resolution : 800x480

Outline dimension : 164.9(W)×100(H) ×6(D) mm

Active area : 154.08(W)×85.92(H) mm

Interface : 24 bit RGB

Brightness : 250 cd/m2

Operating Mode : TN, Normally White, Transmissive

View Direction : 6 o'clock

Operating Temperature : -20 ~ 70 °C

Storage Temperature : -30 ~ 80 °C

Contact Now

7 inch Original TFT LCD Display AT070TN92 800X480 RGB 50 Pin Interface

General Description
  • High-Quality Display: The AT070TN92 boasts a 7-inch 800x480 TFT LCD display, offering a vibrant 16.7 million color palette for a rich visual experience.
  • Optimized for Digital Applications: This display is suitable for digital applications, making it an ideal choice for user input (e.g., "a digital signage project").
  • Wide Viewing Angle: Enjoy a wide viewing angle of 70/70/50/70 (typ.) with a contrast ratio of 500:1, ensuring a clear display from multiple perspectives.
  • Flexible Interface Options: The display features multiple interface options, including parallel RGB (1 ch, 8-bit), FPC, and 50-pin, providing users with flexibility in integration (e.g., "for a custom PCB design").
  • Compact and Reliable: With a compact 7-inch design and a reliable brand like YJ, this display is perfect for applications such as automotive, digital signage, and more.

General Data

Model Name Innolux 7 inch TFT Display
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9(H)×100(V)×6(D) mm
Display Area (W*H)mm 154.08(W)×85.92(H) mm
Interface RGB
Display Mode Normally White TN,Transmissive
Viewing Direction 12:00 o'clock
Brightness 250 cd/m2
Pin number 50
Viewing Angle 70/70/50/70
Operating temperatures -20 ~ 70 °C
Storage temperatures -30 ~ 80 °C

Drawing

800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB

Product Details

800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB

TFT Applications

This 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

800X480 Original LCD Display 7 Inch Car LCD Display 50 Pin Interface RGB
